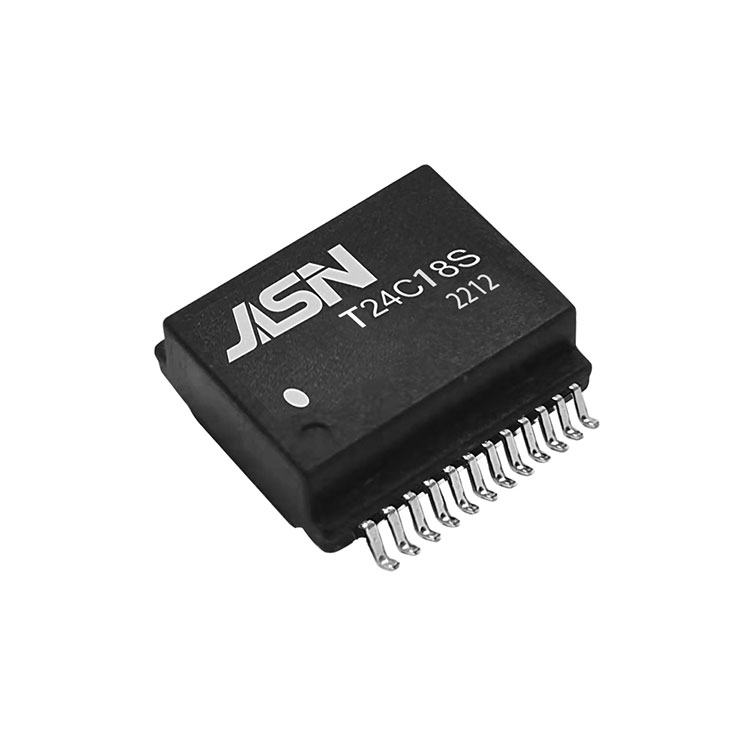

18G HDBASE-T Transformer

JASN Bilang isang Professional 18G HDBase-T Transformer, maaari mong matiyak na bumili ng HDBase-T Transformer mula sa aming pabrika at mag-aalok kami sa iyo ng pinakamahusay na serbisyo pagkatapos ng pagbebenta at napapanahong paghahatid. Ang T24C18S ay idinisenyo para sa application ng audio-video. Ang bahaging ito ay sumunod sa mga valens chips.

Model: T24C18S

Modelo:T24C18S

Magpadala ng Inquiry

PDF Download

Paglalarawan ng Produkto

High quality 18G HDBase-T Transformer is offered by China manufacturer JASN. Buy 18G HDBase-T Transformer which is of high quality directly with low price.

Feature

Compliant with IEEE 802.3
Comply with RoHS requirements.
Designed to support applications up to 600mA Per centre tap
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +105℃.

Electrical Specifications @ 25℃

OCL:	120uH Min. @100KHz/0.1V,
Hi-POT :	1500Vrms
Turn Ratio:	1CT:1CT±3%
Insertion Loss:	-2.0dB Max @1-600MHz
Insertion Loss:	-2.5dB Max @600-800MHz
Return Loss:	-20dB Min @1-40MHz
	-20+10log(f/40)dB Min @40-600MHz
	-9+20log(f/600)dB Min @600-800MHz
Cross Talk :	-40dB Min @1-100MHz
	-25dB Min @100-600MHz
	-18dB Min @600-800MHz
CMRR:	-30dB Min @1-100MHz
	-20dB Min @100-600MHz
	-15dB Min @600-800MHz
